AMT 12 Volt DC Washdown Pump 12DC-95

The AMT 12 Volt DC High Head Washdown Pump is engineered for demanding OEM, septic service, pumper, and marine applications where reliable 12V DC performance is required. Built for high-pressure washdown in damp and harsh environments, this premium-duty pump delivers durability, efficiency, and easy serviceability.

Designed with a pull-from-rear configuration, maintenance can be performed without disconnecting piping — minimizing downtime and maximizing productivity in the field.

⚠️ Note: Pump is not self-priming and requires flooded suction. Unit is not submersible.

Key Features

• Maximum Flow: 56 GPM

• Maximum Head: 80 ft. (35 PSI)

• Motor: 7/8 HP Premium 12 Volt DC Washdown Duty Motor

• Duty Rating: 1-Hour Duty Cycle

• High-Efficiency Closed Impeller for optimal performance

• Discharge Port Rotates in 90° Increments for flexible installation

• Pull-from-Rear Design for easy servicing without disturbing piping

• (4) Front Drain Plugs for maintenance convenience

Construction Options

Stainless Steel Model

• 300 Series Investment Cast Stainless Steel

• Stainless Steel Impeller

• Viton Mechanical Seal and O-Ring

Cast Iron Model

• Cast Iron Housing

• Stainless Steel Impeller

• Buna-N Mechanical Seal and O-Ring

Built for Harsh Environments

The premium 12V DC motor is specifically designed for high-pressure washdown and wet operating conditions:

• Epoxy-coated motor housing

• Interior moisture-resistant coating

• Condensate drains

• Special shaft seals to retard water intrusion

• Stainless steel motor shaft

• 12V DC stud connections with O-ring seals

• Oversized brushes for extended brush life

• Base mount configuration

Ideal Applications

✔ Septic & vacuum trucks
✔ Pumper units
✔ Marine washdown systems
✔ OEM equipment builds
✔ Service trucks requiring 12V DC washdown capability

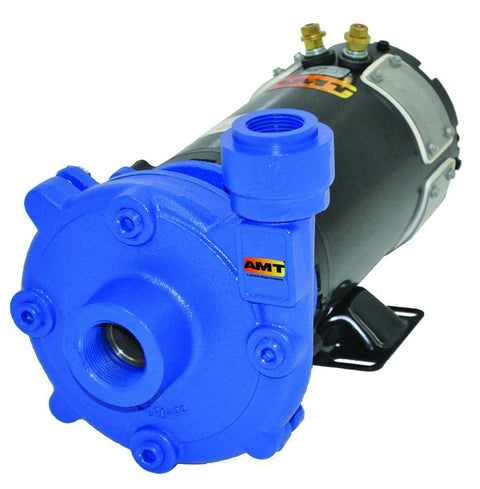

AMT 12DC-95, 12 Volt DC Washdown Pump, 7/8 HP, 1-1/4" NPT Suction, 1" NPT Discharge, 52 GPM, Cast Iron, Buna-N Shaft Seal
