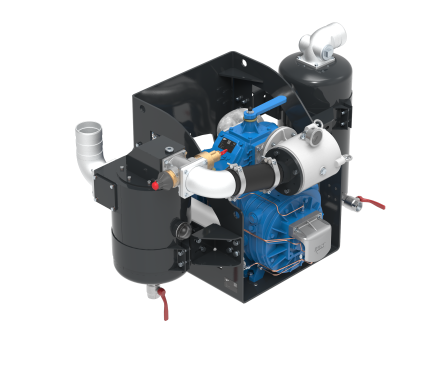

Jurop LC420 Complete Package 18140098E0

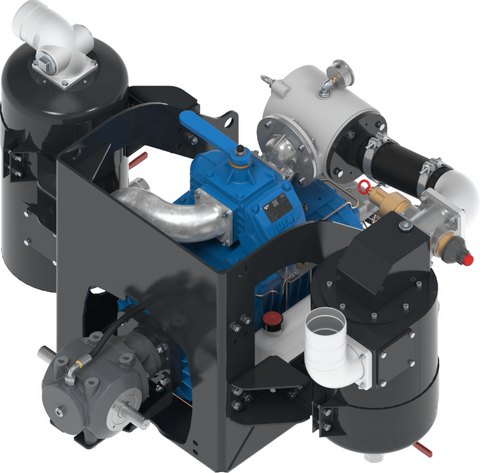

The LC420 SYSTEM is a module that combines a vacuum/pressure vane pump (LC Series) with a three-axis gearbox, designed to connect directly to the power transmission system of the equipment it is installed on.
It comes equipped with a gearbox and a direct-drive configuration that eliminates the need for a coupling. Additional components include a vacuum gauge, remote thermometer, cyclone purifier, injection and discharge silencers, air filter, flushing kit, and swiveling conveyors.
The LC420 SYSTEM includes an LC420 pump with fan cooling, using two opposing fans to effectively dissipate heat during continuous heavy-duty operation. It features a three-shaft gearbox with direct drive (no coupling), along with a vacuum/pressure relief valve, vacuum/pressure gauge, remote thermometer, cyclone purifier, injection and discharge silencers, air filter, flushing kit, oil expansion tank, and a swiveling conveyor.
Performance specifications:
- Maximum rotation (with gearbox): 1300 RPM
- Airflow: 420 CFM
- Maximum vacuum: 27.5 inHg at 92%, 28.5 inHg at 95%
- Maximum pressure: 15 psi
- Power requirement at maximum vacuum: 24 HP
- Power requirement at maximum pressure: 32 HP
